Category : Reverse Engineering
Description :
i can tell that you are going to follow the wrong path ( i see the future )
๐๐ฎ๐ญ๐ก๐จ๐ซ : ๐๐ฅ๐๐๐ค๐ค๐๐๐๐ซ
Files Given : 'hoogments(binary)'
Solution
We start with our file command :
hoogments: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=387955f4ddc2d26288e0f3c43d2b919b0255bd4f, for GNU/Linux 4.4.0, stripped
Our usual stripped binary , we try to execute it and give it a random input :
~/All/Rev/summerrush/hoogments ./hoogments โ
WELCOMEEE ! can you figure out this one ?
๐ฅ๐ฆณ๐ดโ๐กโ ๐ฐโโฐโ๐ฉ๐๐ช ๐ท๐๐โพโฏ๐ฅโ๐ณ๐ซค๐ฆโ๐ฉพโฉ๐๐ฅน๐๐ซผ๐๐งฟ๐ฅ๐ซ
FL1TZ{testtest}
BYE BYEEEEEEEEEEEEEEEEEEEEEE
:(
Oh we got a bye bye , i think giving the correct flag is the way to solve it like usual , let's just throw it in ida and see what we get :
__int64 __fastcall main(int a1, char **a2, char **a3)
{
'truncated'
v23 = __readfsqword(0x28u);
setlocale(6, locale);
sub_17A3();
for ( i = 0; i <= 33; ++i )
{
v19[i] = sub_11F9();
*(_QWORD *)&v19[2 * i + 36] = v3;
}
v19[34] = 0;
wprintf(U"WELCOMEEE ! can you figure out this one ?\n");
wprintf(U"%ls\n", v19);
for ( j = 0; j <= 33; ++j )
{
v17 = __isoc23_strtol(*(_QWORD *)&v19[2 * j + 36] + 2LL, 0, 16);
s = (char *)malloc(0x14u);
sprintf(s, "0x%lx", v17);
*(_QWORD *)&v19[2 * j + 104] = s;
}
for ( k = 0; k <= 33; ++k )
{
v14 = __isoc23_strtol(*(_QWORD *)&v19[2 * k + 104], 0, 0);
v15 = sub_176B(v14);
v16 = (char *)malloc(0x14u);
sprintf(v16, "0x%lx", v15);
*(_QWORD *)&v19[2 * k + 172] = v16;
}
for ( m = 0; m <= 33; ++m )
{
v11 = __isoc23_strtol(*(_QWORD *)&v19[2 * m + 172], 0, 0);
v12 = sub_16D0(v11);
v13 = (char *)malloc(0x14u);
sprintf(v13, "0x%lx", v12);
*(_QWORD *)&v19[2 * m + 240] = v13;
}
for ( n = 0; n <= 33; ++n )
v20[n] = __isoc23_strtol(*(_QWORD *)&v19[2 * n + 240], 0, 0);
if ( fgets(v22, 35, stdin) )
{
v22[strcspn(v22, "\n")] = 0;
for ( ii = 0; ii <= 33; ++ii )
v21[ii] = v22[ii];
if ( (unsigned int)sub_17B6(v21, v20) )
wprintf(U"GRATZZZZZZZ that should be the flag !!!!!\n");
else
wprintf(":");
return 0;
}
else
{
wprintf(":");
return 1;
}
}
We can notice the string "GRATZZZZZZZ that should be the flag !!!!!" , that's our winning message , let's rename variables and functions so it becomes more readable :
__int64 __fastcall main(int a1, char **a2, char **a3)
{
v23 = __readfsqword(0x28u);
setlocale(6, locale);
f1();
for ( i = 0; i <= 33; ++i )
{
v19[i] = f2();
*(_QWORD *)&v19[2 * i + 36] = v3;
}
v19[34] = 0;
wprintf(U"WELCOMEEE ! can you figure out this one ?\n");
wprintf(U"%ls\n", v19);
for ( j = 0; j <= 33; ++j )
{
v17 = __isoc23_strtol(*(_QWORD *)&v19[2 * j + 36] + 2LL, 0, 16);
s = (char *)malloc(0x14u);
sprintf(s, "0x%lx", v17);
*(_QWORD *)&v19[2 * j + 104] = s;
}
for ( k = 0; k <= 33; ++k )
{
v14 = __isoc23_strtol(*(_QWORD *)&v19[2 * k + 104], 0, 0);
v15 = f3(v14);
v16 = (char *)malloc(0x14u);
sprintf(v16, "0x%lx", v15);
*(_QWORD *)&v19[2 * k + 172] = v16;
}
for ( m = 0; m <= 33; ++m )
{
v11 = __isoc23_strtol(*(_QWORD *)&v19[2 * m + 172], 0, 0);
v12 = f4(v11);
v13 = (char *)malloc(0x14u);
sprintf(v13, "0x%lx", v12);
*(_QWORD *)&v19[2 * m + 240] = v13;
}
for ( n = 0; n <= 33; ++n )
susarray[n] = __isoc23_strtol(*(_QWORD *)&v19[2 * n + 240], 0, 0);
if ( fgets(Input, 35, stdin) )
{
Input[strcspn(Input, "\n")] = 0;
for ( ii = 0; ii <= 33; ++ii )
input2[ii] = Input[ii];
if ( (unsigned int)f5(input2, susarray) )
wprintf(U"GRATZZZZZZZ that should be the flag !!!!!\n");
else
wprintf(":");
return 0;
}
else
{
wprintf(":");
return 1;
}
}
What concerns us here are the following : * The input * The susarray * The f5
Now to our surprise , if someone reached this step , and decided to just reverse the f5 , they will cross the wrong path ( like the description stated ) And by reversing f5 we will get the flag :
FAKEFLAG{secret_is_altering_main!}
Then you should do your dynamic analysis , let's just put a breakpoint in our f5 function and run , and the surprise is , the f5 isn't even executed !!! HOWW?

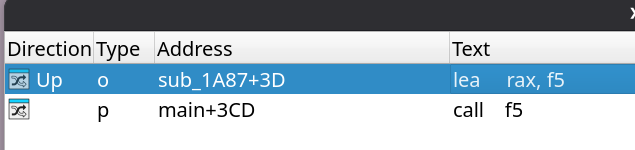

The most logical thing to do is , to see where was the f5 func called , and we can do that by clicking on it then pressing X
Oh , i can guess now , that this has to do with init_array segment ! (you can have code there which will be exececuted before main) We follow the first reference and here is what we get this function that i will be naming whattt:
__int64 whattt()
{
sub_12C5(f4, sub_13A7);
sub_12C5(f3, sub_1A4A);
sub_12C5(f5, sub_143A);
return sub_12C5(f1, sub_1758);
}

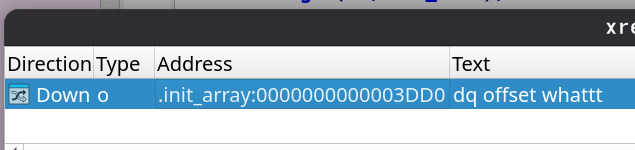

First , to confirm our assumption about the init_array segmetn , let's check where whattt was referenced using X ( yet again ) :
BINGOO !!
This whattt is calling a sus function (which i will name it to magic) , that is calling the functions we just found in main ???
unsigned __int64 __fastcall magic(__int64 func1, int func2)
{
__int64 len; // [rsp+18h] [rbp-28h]
unsigned __int64 v4; // [rsp+38h] [rbp-8h]
v4 = __readfsqword(0x28u);
len = sysconf(30);
if ( mprotect((void *)(func1 & -len), len, 7) )
{
perror("mprotect");
}
else
{
*(_BYTE *)func1 = -23;
*(_DWORD *)(func1 + 1) = func2 - func1 - 5;
if ( mprotect((void *)(func1 & -len), len, 5) )
perror("mprotect restore");
}
return v4 - __readfsqword(0x28u);
}
That sounds complicated :/ , or not ?
This magic function is patching memory to redirect execution from func1 to func2 . Or in other words Hooking !
How is that ?? It Writes a JMP Instruction using JMP opcode ! Then calculates the jump offset between the functions !
*(_BYTE *)func1 = -23; // 0xE9 is the opcode for JMP (since -23 = 0xE9 in 8-bit signed)
*(_DWORD *)(func1 + 1) = func22 - func11 - 5; // Relative offset to jump from `func1` to `func2`
Also even if you look for mprotect you will know that it is commonly used in function hooking ! ( because it allows modifying memory permissions dynamically)
Let's rename our functions that were passed to the hooking function :
__int64 whattt()
{
magic(f4, realf4);
magic(f3, realf3);
magic(f5, realf5);
return magic(f1, realf1);
}
Now what interests is realf5 cause it will be the one checking the flag! , but as we can see form main , the susarray is being manipulated by realf4, realf3 and realf1 , let's just it's value dynamically by setting a breakpoint before realf5 is called ! ( or you can reverse the other functions and lose your time :c)
susarray= [32120,32365,32044,2483,32169,2521,32173,2484,2541,2455,32075,32135,32425,31964,32178,31959,2494,2474,32342,2513,32045,32440,32354,2516,32414,2443,32146,32351,32134,32446,32130,32382,32136,32434]
Now what's left is reversing the realf5 function :
__int64 __fastcall realf5(__int64 input, __int64 susarray)
{
int i; // [rsp+14h] [rbp-2CCh]
_DWORD v4[36]; // [rsp+20h] [rbp-2C0h]
_QWORD v5[34]; // [rsp+B0h] [rbp-230h] BYREF
_QWORD v6[36]; // [rsp+1C0h] [rbp-120h] BYREF
v6[35] = __readfsqword(0x28u);
v4[0] = 4;
v4[1] = 4;
v4[2] = 6;
v4[3] = 1;
v4[4] = 3;
v4[5] = 1;
v4[6] = 6;
v4[7] = 1;
v4[8] = 1;
v4[9] = 1;
v4[10] = 3;
v4[11] = 4;
v4[12] = 2;
v4[13] = 2;
v4[14] = 5;
v4[15] = 3;
v4[16] = 1;
v4[17] = 1;
v4[18] = 4;
v4[19] = 1;
v4[20] = 3;
v4[21] = 5;
v4[22] = 5;
v4[23] = 1;
v4[24] = 2;
v4[25] = 1;
v4[26] = 6;
v4[27] = 6;
v4[28] = 6;
v4[29] = 3;
v4[30] = 2;
v4[31] = 9;
v4[32] = 9;
v4[33] = 2;
qmemcpy(v5, &unk_2140, sizeof(v5));
qmemcpy(v6, &unk_2260, 0x110u);
for ( i = 0; i <= 33; ++i )
{
if ( v5[i] + 100 * *(_QWORD *)(8LL * i + input) * (int)v4[i] - v6[i] != *(_QWORD *)(8LL * i + susarray) )
{
wprintf("B");
return 0;
}
}
return 1;
}
The same goes for v5 and v6 , we set our breakpoints and extract their values , and after that we have everthing we need to solve the challenge , here is the python solver :
susarray=[32120,32365,32044,2483,32169,2521,32173,2484,2541,2455,32075,32135,32425,31964,32178,31959,2494,2474,32342,2513,32045,32440,32354,2516,32414,2443,32146,32351,32134,32446,32130,32382,32136,32434]
v4 =[4, 4, 6, 1, 3, 1, 6, 1, 1, 1, 3, 4, 2, 2, 5, 3, 1, 1, 4, 1, 3, 5, 5, 1, 2, 1, 6, 6, 6, 3, 2, 9, 9, 2]
v6= [0, 0, 0, 8400, 0, 12300, 0, 5100, 10300, 10900, 0, 0, 0, 0, 0, 0, 7200, 4800, 0, 10700, 0, 0, 0, 9500, 0, 7200, 0, 0, 0, 0, 0, 0, 0, 0]
v5= [4120, 1965, 2644, 2483, 5169, 2521, 373, 2484, 2541, 2455, 1775, 935, 9225, 8964, 678, 3459, 2494, 2474, 742, 2513, 7145, 940, 854, 2516, 8614, 2443, 946, 1151, 934, 7246, 8930, 2682, 2436, 7434]
flag=[]
for i in range(34):
flag.append((susarray[i]+v6[i]-v5[i])/(100*v4[i]))
print("".join(chr(int(x)) for x in flag))
FL1TZ{53gmeNts?_H0OkS??_wH444Tt!!}
