Category : Mobile
𝐀𝐮𝐭𝐡𝐨𝐫 : 𝐁𝐥𝐚𝐜𝐤𝐤𝐚𝐝𝐞𝐫
Files Given : 'Native2.apk , output.dat'
Solution

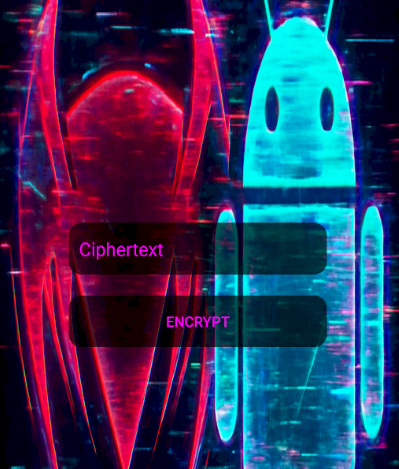

This is the common flag-decryption challenge , we have the apk that was used to encrypt the flag , and we were handed the output.dat which contains the encrypted flag , we can know that by launching the apk :
Now time for the MainActivity :
public class MainActivity extends AppCompatActivity {
/* renamed from: hf */
heavynativeflag f191hf = new heavynativeflag();
@Override // androidx.fragment.app.FragmentActivity, androidx.activity.ComponentActivity, androidx.core.app.ComponentActivity, android.app.Activity
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
EdgeToEdge.enable(this);
setContentView(C0794R.layout.activity_main);
ViewCompat.setOnApplyWindowInsetsListener(findViewById(C0794R.id.rootLayout), new OnApplyWindowInsetsListener() { // from class: io.securinets.level13.MainActivity$$ExternalSyntheticLambda0
/* JADX DEBUG: Don't trust debug lines info. Lines numbers was adjusted: min line is 0 */
@Override // androidx.core.view.OnApplyWindowInsetsListener
public final WindowInsetsCompat onApplyWindowInsets(View view, WindowInsetsCompat windowInsetsCompat) {
return MainActivity.lambda$onCreate$0(view, windowInsetsCompat);
}
});
AppCompatButton encButton = (AppCompatButton) findViewById(C0794R.id.encButton);
encButton.setOnClickListener(new View.OnClickListener() { // from class: io.securinets.level13.MainActivity.1
@Override // android.view.View.OnClickListener
public void onClick(View v) {
TextView payload = (TextView) MainActivity.this.findViewById(C0794R.id.ciphertext);
String payloadVal = payload.getText().toString();
byte[] encryptedData = MainActivity.this.f191hf.magic(payloadVal);
File desktopDir = Environment.getExternalStoragePublicDirectory(Environment.DIRECTORY_DOWNLOADS);
File outputFile = new File(desktopDir, "output.dat");
try {
FileOutputStream fos = new FileOutputStream(outputFile);
try {
fos.write(encryptedData);
Toast.makeText(MainActivity.this, "File saved to Downloads/output.dat", 1).show();
fos.close();
} finally {
}
} catch (IOException e) {
Log.e("SaveFile", "Error writing file", e);
Toast.makeText(MainActivity.this, "Error saving file", 0).show();
}
}
});
}

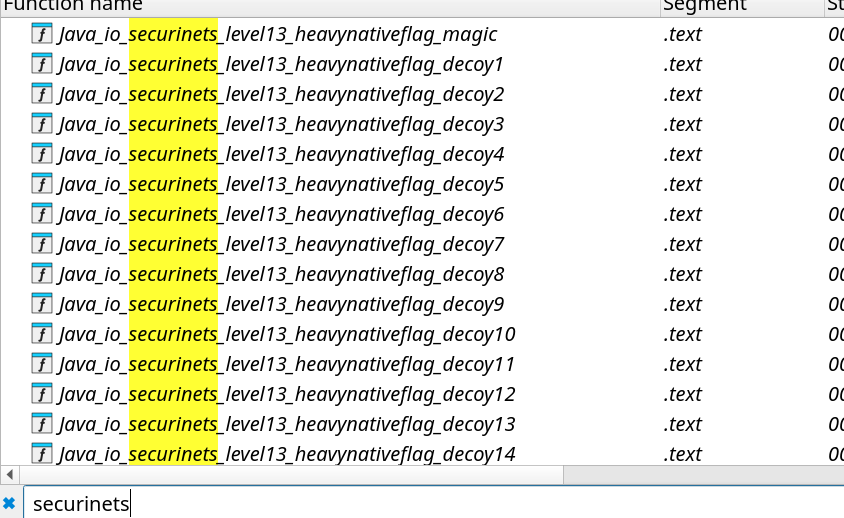

The activity instanciates a heavynativeflag class , then simply encrypts the ciphertext then saves it in output.dat , but again , its a native lib used here to do the encryption , so we take our .so file out and this time it shouldn't have a static flag xd , so we throw it in ida and after that we simply search for the package name ( cause native libs are usually in the same package as the apk ) "I'll just search for securinets" and we find our magic function that was used to encrypt :
Let's see what the function does :
int __cdecl Java_io_securinets_level13_heavynativeflag_magic(_JNIEnv *a1, int a2, int a3)
{
int v3; // eax
int v4; // esi
int v5; // eax
int v7; // [esp+20h] [ebp-4Ch]
_BYTE v8[20]; // [esp+38h] [ebp-34h] BYREF
_BYTE v9[12]; // [esp+4Ch] [ebp-20h] BYREF
int StringUTFChars; // [esp+58h] [ebp-14h]
StringUTFChars = _JNIEnv::GetStringUTFChars(a1, a3, 0);
std::string::basic_string[abi:ne180000]<0>(v9, StringUTFChars);
_JNIEnv::ReleaseStringUTFChars(a1, a3, StringUTFChars);
encrypt_flag_bytes(v8);
v3 = std::vector<unsigned char>::size[abi:ne180000](v8);
v7 = _JNIEnv::NewByteArray(a1, v3);
v4 = std::vector<unsigned char>::size[abi:ne180000](v8);
v5 = std::vector<unsigned char>::data[abi:ne180000](v8);
_JNIEnv::SetByteArrayRegion(a1, v7, 0, v4, v5);
std::vector<unsigned char>::~vector[abi:ne180000](v8);
std::string::~string(v9);
return v7;
}
ahh looks hard to read , let's rename few variables , according to program flow and what the functions do ( just search up function names and u'll find them in the c++ docs)
inputChars = _JNIEnv::GetStringUTFChars(jniEnv, input, 0);
std::string::basic_string[abi:ne180000]<0>(v9, inputChars);
_JNIEnv::ReleaseStringUTFChars(jniEnv, input, inputChars);
encrypt_flag_bytes(v8);
encryptedPayloadSize = std::vector<unsigned char>::size[abi:ne180000](v8);
ByteArray = _JNIEnv::NewByteArray(jniEnv, encryptedPayloadSize);
v4 = std::vector<unsigned char>::size[abi:ne180000](v8);
v5 = std::vector<unsigned char>::data[abi:ne180000](v8);
_JNIEnv::SetByteArrayRegion(jniEnv, ByteArray, 0, v4, v5);
std::vector<unsigned char>::~vector[abi:ne180000](v8);
std::string::~string(v9);
return ByteArray;
What interests us is the encrypt_flag_bytes function , let's find out what it does :
__int64 __fastcall encrypt_flag_bytes(__int64 a1, __int64 input)
{
__int64 iterEnd; // [rsp+18h] [rbp-D8h]
__int64 iterBegin; // [rsp+20h] [rbp-D0h]
_BYTE encryptedBytes[24]; // [rsp+28h] [rbp-C8h] BYREF
_BYTE substr3[24]; // [rsp+40h] [rbp-B0h] BYREF
_BYTE desLayer2[24]; // [rsp+58h] [rbp-98h] BYREF
_BYTE substr2[24]; // [rsp+70h] [rbp-80h] BYREF
_BYTE desLayer1[28]; // [rsp+88h] [rbp-68h] BYREF
_BYTE substr1[24]; // [rsp+B0h] [rbp-40h] BYREF
_BYTE rot13String[24]; // [rsp+C8h] [rbp-28h] BYREF
__int64 input2; // [rsp+E0h] [rbp-10h]
__int64 v13; // [rsp+E8h] [rbp-8h]
v13 = a1;
input2 = input;
rot13(rot13String, input);
std::string::substr[abi:ne180000](substr1, input2, 0, 8);
std::string::resize(substr1, 8, 88);
des_encrypt(desLayer1, rot13String, substr1);
std::string::substr[abi:ne180000](substr2, input2, 6, 4);
std::string::resize(substr2, 8, 88);
des_encrypt(desLayer2, desLayer1, substr2);
std::string::substr[abi:ne180000](substr3, input2, 2, 4);
std::string::resize(substr3, 8, 88);
des_encrypt(encryptedBytes, desLayer2, substr3);
iterBegin = std::string::begin[abi:ne180000]();
iterEnd = std::string::end[abi:ne180000](encryptedBytes);
_ZNSt6__ndk16vectorIhNS_9allocatorIhEEEC2INS_11__wrap_iterIPcEETnNS_9enable_ifIXaasr31__has_forward_iterator_categoryIT_EE5valuesr16is_constructibleIhNS_15iterator_traitsIS9_E9referenceEEE5valueEiE4typeELi0EEES9_S9_(
a1,
iterBegin,
iterEnd);
std::string::~string(encryptedBytes);
std::string::~string(substr3);
std::string::~string(desLayer2);
std::string::~string(substr2);
std::string::~string(desLayer1);
std::string::~string(substr1);
std::string::~string(rot13String);
return a1;
}
This function basically takes a string, obfuscates it with ROT13, then runs three successive DES encryptions on different slices of the string, and finally packs the encrypted result into a byte vector to return.
That part is just taking the processed/encrypted bytes (between beginIter and endIter) and stuffing them into the output vector so they can be returned to the caller that's why we can ignore it lol , so now we have our flow we just need to write our solver which will do the decryption process and it starts with 3 des_decrypt then rot13 , here is the flow :
Encrypted bytes (outputVector from encrypt_flag_bytes)
→ DES decrypt using key3(substr3 = input[2:6], padded to 8 bytes with 'X')
→ DES decrypt using key2 (substr2 = input[6:10], padded to 8 bytes with 'X')
→ DES decrypt using key1 (substr1 = input[0:8], padded to 8 bytes with 'X')
→ Recombine decrypted layers to reconstruct ROT13 version of original input → Apply ROT13 to recover the original plaintext ciphertext/flag
NOTEE : as we know the flag format is "Securinets{flag}", the substrs (keys) are already known : - key1 = "Securine" - key2 = "nets" - key3 = "curi"
We have all we need to craft our solver :
from Crypto.Cipher import DES
def rot13(text: str) -> str:
result = []
for c in text:
if 'a' <= c <= 'z':
result.append(chr((ord(c) - ord('a') + 13) % 26 + ord('a')))
elif 'A' <= c <= 'Z':
result.append(chr((ord(c) - ord('A') + 13) % 26 + ord('A')))
else:
result.append(c)
return ''.join(result)
def des_decrypt(ciphertext: bytes, key: bytes) -> bytes:
key = key.ljust(8, b'X')[:8]
cipher = DES.new(key, DES.MODE_ECB)
decrypted = cipher.decrypt(ciphertext)
return decrypted.rstrip(b'\0')
def decrypt_flag_bytes(encrypted_bytes: bytes) -> str:
key3 = "Securinets{test}"[2:6].encode('utf-8')
layer3 = des_decrypt(encrypted_bytes, key3)
key2 = "Securinets{test}"[6:10].encode('utf-8')
layer2 = des_decrypt(layer3, key2)
key1 = "Securinets{test}"[:8].encode('utf-8')
layer1_bytes = des_decrypt(layer2, key1)
layer1_str = layer1_bytes.decode('utf-8', errors='ignore')
return rot13(layer1_str)
with open("output.dat", "rb") as f:
encrypted = f.read()
decrypted = decrypt_flag_bytes(encrypted)
print(f"Decrypted: {decrypted}")
Result :
Decrypted: Securinets{n4T1v3_L1bS_h4V3_L0T5_0f_53cR3t5!!}
